HG Series Panel Comparison Chart |

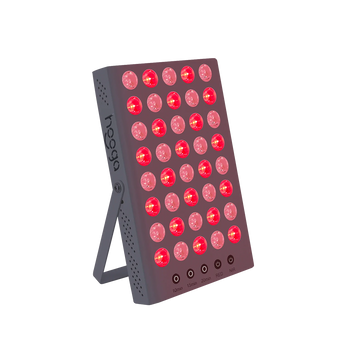

 HG200 |

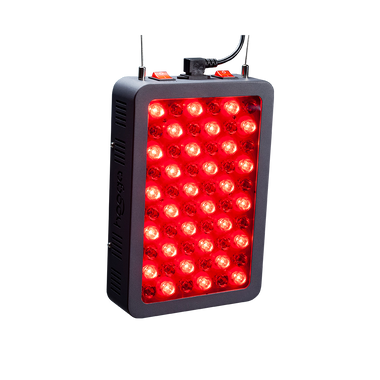

 HG300 |

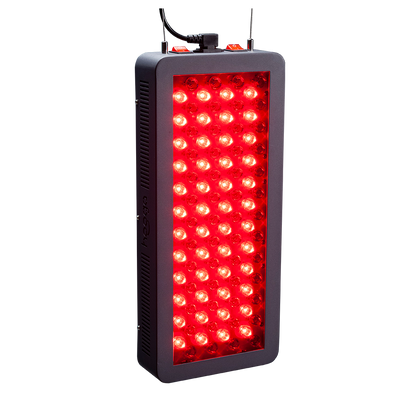

 HG500 |

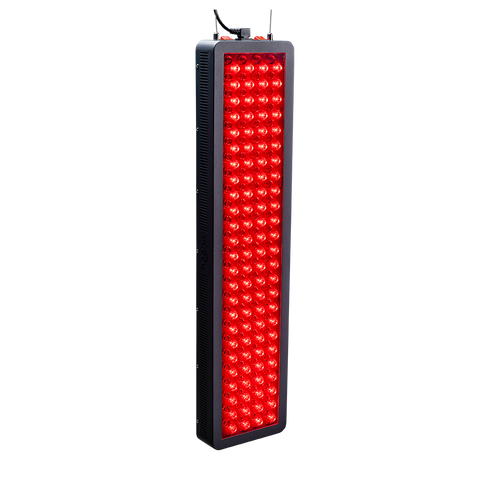

 HG1000 |

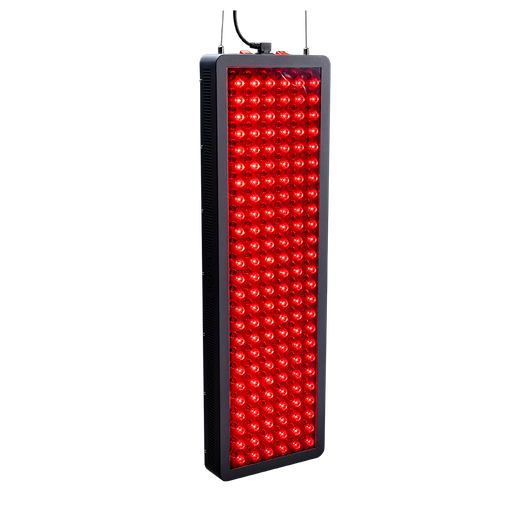

 HG1500 |
|---|---|---|---|---|---|
| LED Power Class | 200W | 300W | 500W | 1000W | 1500W |
| Power Consumption | 55W | 80W | 150W | 350W | 585W |
| Weight | 2.5lb | 5.5lb | 8.8lb | 17.6lb | 33lb |
| Dimensions | 9.5”x 6” x 1" | 12.2”x 8.2” x 2.5" | 18.8”x 8.2” x 2.7" | 35.8”x 8.2” x 2.7" | 35.8”x 11” x 2.7” |
| LEDs | 40 Single Chip | 60 Single Chip | 100 Single Chip | 200 Single Chip | 300 Single Chip |
| Focusing Lens Beam Angle | 30 Degree | 60 Degree | 60 Degree | 60 Degree | 60 Degree |
| Irradiance at 6” | 100 mW/cm² | 73 mW/cm² | 94 mW/cm² | 98 mW/cm² | 115 mW/cm² |
| Max Coverage at 18" | 30.3” x 26.7” | 31” x 28” | 41” x 32” | 55” x 32” | 55” x 35” |
| EMF Emission | 0.0 μT @ 6” | 0.0 μT @ 6” | 0.0 μT @ 6” | 0.0 μT @ 6” | 0.0 μT @ 6” |
| Lifespan | 50,000+ Hours | 50,000+ Hours | 50,000+ Hours | 50,000+ Hours | 50,000+ Hours |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
